United Arab Emirates electronic document specifications.
OpenPeppol AISBL, Post-Award Coordinating Community v1.0.0
Link to main site of documentation
Introduction
The purpose of this document is to specify a Tax Data Document (TDD) that may be used in the United Arab Emirates to report issued and received invoices to the UAE Federal Tax Authority (FTA) for the purpose of VAT reporting using continuous transaction control (CTC) methods.
Scope
This document is concerned with clarifying the structure and functionality of the TDD transaction and how it shall be applied.
Audience
The audience for this document is organisations wishing to be Peppol enabled for CTC tax reporting in the UAE, and/or their ICT-suppliers. These organisations may be:
-
Service providers
-
Contracting Authorities (CA)
-
Economic Operators (EO)
-
Software Developers
-
Government Authorities
More specifically, roles addressed are the following:
-
ICT Architects
-
ICT Developers
-
Business Experts
For further information on Peppol/OpenPeppol see https://peppol.org
Benefits
The TDD transaction may be used by either an invoice issuer seller or an invoice receiver, or a service provider on their behalf, to report the sending or reception of an invoice or a self-billed invoice to FTA, for the purpose of VAT declaration.
-
The TDD can be used by either the issuer or the receiver of an invoice.
-
It provides information about the TDD message itself.
-
It supports management of the TDD message such as submit, replace, withdraw, that may be independent of the invoice exchange between the invoice issuer and the invoice receiver.
-
It provides for different levels of detail about the invoice ranging from simple extract of basic information from the invoice to full inclusion of the invoice.
-
It allows for full inclusion of an invoice either as attachment or in expanded form.
1. Business processes
1.1. Parties and roles

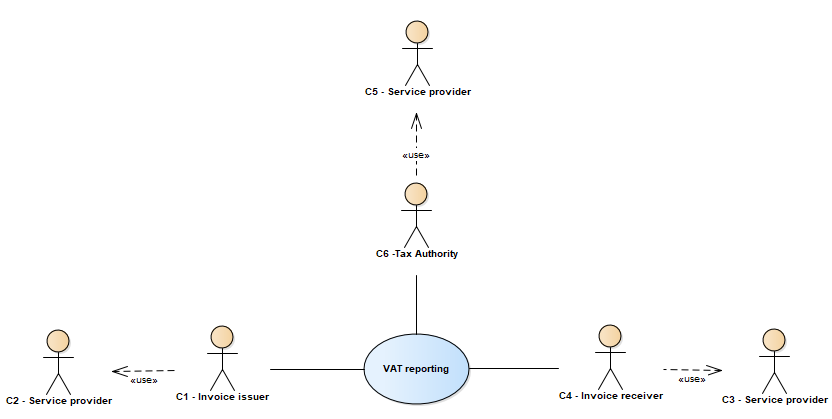

The use-case diagram below shows the use case of VAT reporting and that the parties who interact with it are the invoice issuer (C1), invoice receiver (C4) and the Federal Tax Authority (FTA). The invoice issuer and the invoice receiver are the taxable persons that are responsible for reporting to FTA. Those parties will use the services of service providers (C2, C3 and C5).
1.1.1. Parties
- Invoice issuer C1
-
The party who issues an invoice to an invoice receiver. This is usually the supplier but in self-billing situation this is the buyer. The invoice may contain VAT that the invoice issuer, as a taxable person, is responsible for reporting to FTA.
- Service provider C2
-
A party who provides electronic messaging services that include preparing and transmitting invoices and TDD transactions on behalf of the invoice issuer, C1.
- Service provider C3
-
A party who provides electronic messaging services that include preparing and transmitting TDD transactions on behalf of the invoice receiver, C4, and receiving and forwarding the invoice to the invoice receiver, C4.
- Invoice receiver C4
-
The party who receives the invoice from the invlice issuer. This is usually the buyer but in self-billing situation this is the supplier. The invoice may contain VAT that the invoice receiver, as a taxable person, is responsible for reporting to FTA.
- Service provider C5
-
A party who provides electronic messaging services that include receiving and managing TDD transactions on behalf of a tax authority, C6
- Federal Tax Authority C6
-
The UAE authority that is responsible for collecting VAT and enforcing relevant legislation.
1.2. Tax Data Document process
The TDD process is dependent on the legislation of UAE and the objectives that the invoicing process is intended to achieve in the UAE. This affects the content, the sequence and the timing of the TDD in the overall process.

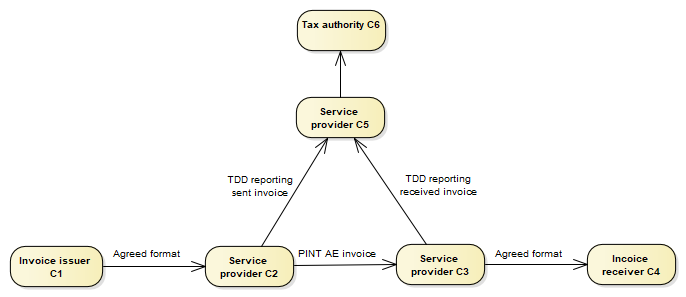

The process using the TDD is described in the following diagram.
The invoice issuer (C1) provides the data of the invoice to his service provider (C2), using the data format agreed between them. With this data the C2 service provider creates a PINT-AE compliant invoice and transmits that to the invoice receiver (C4) through the receivers’ service provider (C3) by using the Peppol network.
With sending the invoice the issuers service provider (C2) creates and sends a TDD document, reporting the issued invoice to FTA through its service provider (C5) by using the Peppol network.
The receivers service provider (C3) forwards the invoice to the invoice receiver (C4) using the data format agreed between them. Following that the receivers service provider (C3) creates and sends a TDD document reporting the reception of the invoice to FTA through its service provider (C5), using the Peppol network.
The FTAs service provider (C5) forwards the TDD document to FTA using a data format agreed between them.
1.3. Tax Data Document functionality
The TDD document contains three main sections:
-
TDD document meta data
-
Data extracts from the reported invoice
-
Inclusion of the full invoice
1.3.1. TDD meta data
The TDD is a report that is based on its own specification. It is exchanged with FTA as opposed to between a invoice issuer and a invoice receiver and it may be sent at a different time.
The first part of the TDD document contains metadata that identifies the specification, the relevant parties and dates and time. It also provides codes that define the role of the parties in the exchange and the function of each instance.
-
A given party may send TDD’s either in the role of an invoice issuer or invoice receiver.
-
There may be more than one instance of a TDD for the same invoice that have different functionality such as submit, update and withdraw.
1.3.3. Full invoice
The full reported invoice shall be included in the TDD as extended XML. See section Source document for details.
2. Rules
The information given in a TDD shall comply to a set of rules on the content of the business terms as well as the relationship between them.
2.1. Custom content
Custom, jurisdiction specific content shall be inserted into the following element of the TDD XML:
/pxs:TaxData/pxs:ReportedTransaction/pxs:CustomContent2.2. Source document
The source document (full invoice) shall be inserted into the following element of the TDD XML:
/pxs:TaxData/pxs:ReportedTransaction/pxs:SourceDocument/cec:ExtensionContentThe source document shall not contain any attachment content.
This means that the XML element EmbeddedDocumentBinaryObject (incl. all its attributes) shall not be part of the inserted source document.
3. Technical details
Following section provide technical details.
3.1. BIS Identifiers
Peppol has a defined policy that specifies how to use identifiers in both its transport infrastructure and within the documents exchanged across that infrastructure. It also introduces principles for any identifiers used in the Peppol environment. The policies that apply to this BIS are the following:
3.1.1. Profiles and messages
All messages contain Business process type (IBT-23) and Specification identifier (IBT-24). Business process type (IBT-23) identifies what business process a given message is part of, and Specification identifier (IBT-24) identifies the kind of message and the rules applied.
Valid document instances shall contain corresponding Business process type (IBT-23) and Specification identifier (IBT-24).
| Specification identifier (IBT-24) is a string without spaces. The list below contains spaces in Specification identifier (IBT-24) to make them easier to read. Make sure to remove any spaces before use. |
In the table below you will find the values to be used as the specification identifier (IBT-24) and the business process type (IBT-23) for this profile
<cbc:CustomizationID>urn:peppol:taxdata:ae-1</cbc:CustomizationID>
<cbc:ProfileID>urn:peppol:taxreporting</cbc:ProfileID>3.2. Datatypes
Semantic data types are used to bridge the gap between the semantic concepts expressed by the information elements defined in the semantic model and the technical implementation. The semantic data types define the allowed value domain for the content, and any additional information components (attributes) needed in order to ensure its precise interpretation.
3.2.1. Primitive types
Semantic data type content may be of the following primitive types. These primitive types were taken from ISO15000, Annex A.
| Primitive type | Definition |
|---|---|
Binary |
A set of finite-length sequences of binary digits. |
Date |
Time point representing a calendar day on a time scale consisting of an origin and a succession of calendar ISO8601. |
Decimal |
A subset of the real numbers, which can be represented by decimal numerals. |
String |
A finite sequence of characters. |
3.2.2. Semantic data types
The different semantic data types are described in the tables below, where various features such as attributes, format, and decimals as well as the basic type are defined for each semantic data type. They are based on {ISO15000}.
When used in an instance of an invoice, each data element will contain data. In the below tables this is identified as the “content”. Whenever a business term is used this term shall always have content and therefore the content is always mandatory.
Amount
An amount states a numerical monetary value. The currency of the amount is defined as a separate business term.
| Component | Use | Primitive Type | Example |
|---|---|---|---|
Content |
Mandatory |
Decimal |
10000 |
Code
Codes are used to specify allowed values in elements as well as for lists of options. Code is different from Identifier in that allowed values have standardized meanings that can be known by the recipient.
| Codes shall be entered exactly as shown in the selected code list of the applicable syntax. |
| Component | Use | Primitive Type | Example |
|---|---|---|---|
Content |
Mandatory |
String |
Abc123 |
Identifier
Identifiers (IDs) are keys that are issued by the sender or recipient of a document or by a third party.
| The use of the attributes is specified for each information element. |
| Component | Use | Primitive Type | Example |
|---|---|---|---|
Content |
Mandatory |
String |
0847976000005 |
Scheme identifier |
Optional |
String |
0088 |
Scheme version identifier |
Optional |
String |
3 |
0088 is the ISO 6523 (ICD) code for the GLN identifier scheme.
Date
Dates shall be in accordance to the “Calendar date complete representation” as specified by {ISO8601}, format YYYY-MM-DD.
| Dates shall not include time zone information. |
| Component | Use | Primitive Type | Example |
|---|---|---|---|
Content |
Mandatory |
Date |
2017-12-01 |
3.3. XML schemas and namespaces
The primary XML schemas used is
-
OpenPeppol TDD, with the target namespace
urn:peppol:schema:taxdata:1.0
As this XML Schema is defined by OpenPeppol itself, it is handled slightly different as e.g. the schema for UBL Invoice. The TDD XML Schema reuses as many common components from OASIS UBL 2.1 as possible but having its own primary identity.
Used XML namespaces in the TDD XML schema are:
| Prefix | URL |
|---|---|
pxs |
|
cac |
|
cbc |
|
cec |
|
udt |
|
For technical reasons, there are no deep integrations with the required XML schemas but instead it is expected that an XML Catalog is used to resolve the required XML schemas. The referenced XML schemas can be downloaded from the OASIS UBL 2.1 publication.
3.4. Glossary
electronic invoice - invoice that has been issued, transmitted and received in a structured electronic format which allows for its automatic and electronic processing
semantic data model - structured set of logically interrelated information elements
information element - semantic concept that can be defined independent of any particular representation in a syntax
structured information element - information element that can be processed automatically
syntax - machine-readable language or dialect used to represent the information elements contained in an electronic document (e.g. an electronic invoice)
business term - label assigned to a given information element which is used as a primary reference
identifier - character string used to establish the identity of, and distinguish uniquely, one instance of an object within an identification scheme from all other objects within the same scheme Note 1 to entry: An identifier may be a word, number, letter, symbol, or any combination of those, depending on the identification scheme used.
identification scheme - collection of identifiers applicable for a given type of object governed under a common set of rules
compliant - some or all features of the invoice model are used and all rules of the invoice model are respected Note 1 to entry: Based on TOGAF definition of a compliant specification
conformant - all rules of the invoice model are respected and some additional features not defined in the invoice model are also used
Optional Whether the option is used or not is the choice of the users independently from other data in the message.
Conditional Whether the option is used or not and in what way is dependent on other data in the message.
Mandatory The option shall be used in all messages.
shall - the definition is an absolute requirement of the specification.
shall not - the definition is an absolute prohibition of the specification.
should - there may exist valid reasons in particular circumstances to ignore a particular item, but the full implications shall be understood and carefully weighed before choosing a different course.
should not - there may exist valid reasons in particular circumstances when the particular behaviour is acceptable or even useful, but the full implications should be understood and the case carefully weighed before implementing any behaviour described with this label.
may - is truly optional.
